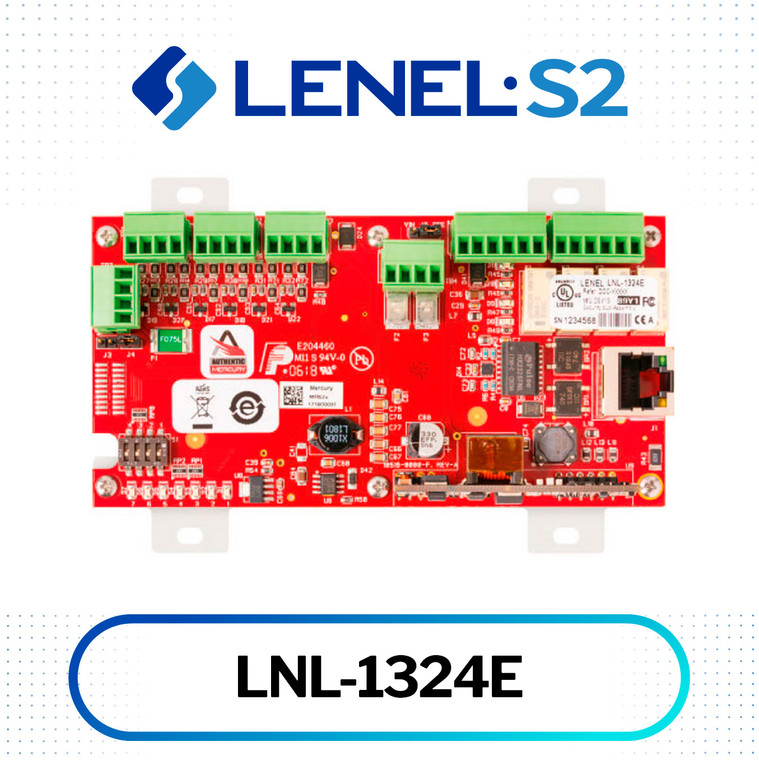

Módulo de interfaz de lector dual LNL-1324E

• Supports 10/100 Ethernet communications to LenelS2 X-Series Intelligent System Controllers
• Advanced Encryption Standard 256-bit encryption supported
• Mounts into a standard ANSI/NEMA triple gang switch box for a compact footprint
• Firmware stored in flash memory; background download of firmware updates supported
• Custom or standard end-of-line resistors supported

Features when in network-connected single door controller mode:

• OSDP reader port supports four OSDP reader addresses
• Paired or single reader support per door
• Supports OSDP, including biometric template transfer and Secure Channel encryption
• Two outputs; one dedicated for a strike and one general purpose (Form C, 2A @ 30Vdc) per door
• Two fixed inputs for door contact and request to exit (REX) per door
• Two programmable auxiliary inputs, one for each door

Features when in network-connected I/O module mode:

• Four general-purpose auxiliary relay outputs (Form C, 2A @ 30Vdc)
• Six programmable auxiliary inputs (supervised or unsupervised)

Extended Functionality:

• Connect supported FIPS-201 readers for embedded authentication (when used with LNL-X4420 and appropriate OnGuard software, licenses and third-party hardware)

--------------------------------------------------------------------------
