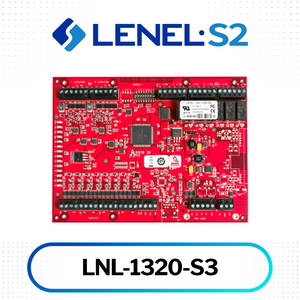

Módulo de interfaz de lector único LNL-1300 Serie 3

• 12 or 24 VDC power supply
• Supports Data1/Data0, Clock/Data, Supervised and Unsupervised F2F and OSDP-compatible RS-485 readers and keypads
• Supports Open Supervised Device Protocol (OSDP) readers, including biometric template transfer and Secure Channel encryption
• Two Form-C relay outputs (5 A door strike and 1 A aux relays)
• Up to 16 different card formats
• Issue code support
• Downloadable firmware
• Door contact open or closed, supervised or non-supervised
• REX push-button monitor - supervised or non-supervised
• Strike control output
• Bicolor or 2-wire reader status LED support
• Reader beeper control
• Plastic mounting channel
• Support for offline reader access mode
• Elevator control, support for 128 floors
• Advanced Encryption Standard (AES) 128-bit algorithm for communications to ISC
• Compatible with current and previous versions of OnGuard

Extended Functionality

• Connect one FIPS-201 reader for embedded authentication (when used with LNL-4420 and appropriate HID® and OnGuard software and licenses)

--------------------------------------------------------------------------
