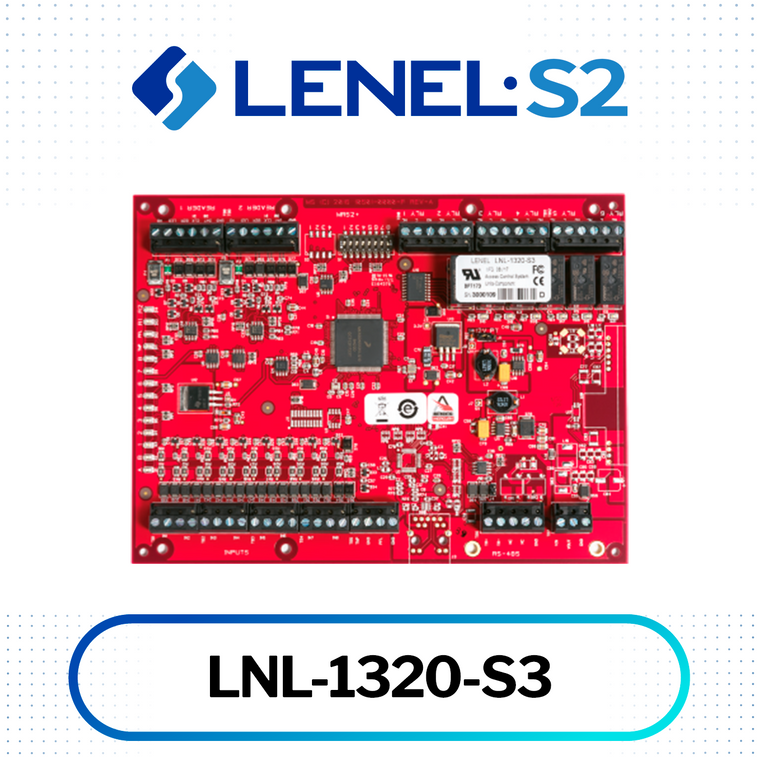

Módulo de interfaz de lector dual LNL-1320 Serie 3

• 12 or 24 VDC power supply
• Supports Data1/Data0, Clock/Data, Supervised and Unsupervised F2F and OSDP-compatible RS-485 readers and keypads
• Supports Open Supervised Device Protocol (OSDP) readers, including biometric template transfer and Secure Channel encryption
• Downloadable firmware
• Six Form-C 5 A at 28 VDC relay outputs
• Up to 16 different formats
• Issue code support for magnetic and Wiegand formats
• Door contact supervision (open/closed)
• REX push-button monitor
• Strike control output
• Bicolor reader status LED support and 2-wire LED support
• Beeper control
• Dedicated tamper and power failure circuits
• Support for offline reader access mode
• On-board jumpers for termination
• On-board regulator allows 12 VDC reader support from 24 VDC power source
• DIP switch-selectable addressing
• Advanced Encryption Standard (AES) 128-bit algorithm for communications to ISC
• Supports Schlage® Handkey® template download
• Compatible with current and previous versions of OnGuarD

Extended Functionality

• Connect FIPS-201 readers for embedded authentication (when used with LNL-4420 and appropriate HID® and OnGuard software and licenses)

--------------------------------------------------------------------------
